BA-350H Automatic Blister Card Packing Machine with High Frequency Sealing

With high frequency sealing system which can make a better and stronger sealing for blisters to cards especially for double blisters. Form blisters, fill (optional), place cards or back blisters, seal blisters to ready-made cards and blisters automatically.
Send Inquiry


BA-350H automatic blister card packing machine with high frequency sealing can form blisters, fill (optional), seal blisters to ready-made cards or blisters automatically. This machine adopts high frequency sealing which can make a better and stronger sealing for blister to cards especially for double blister. Face seal blister type and double blister type can be made on this machihne.

The perfect combination of complete product visibility on one side and printed information on the other side of the packaging helps consumers and users find what they are looking for quickly and easily.

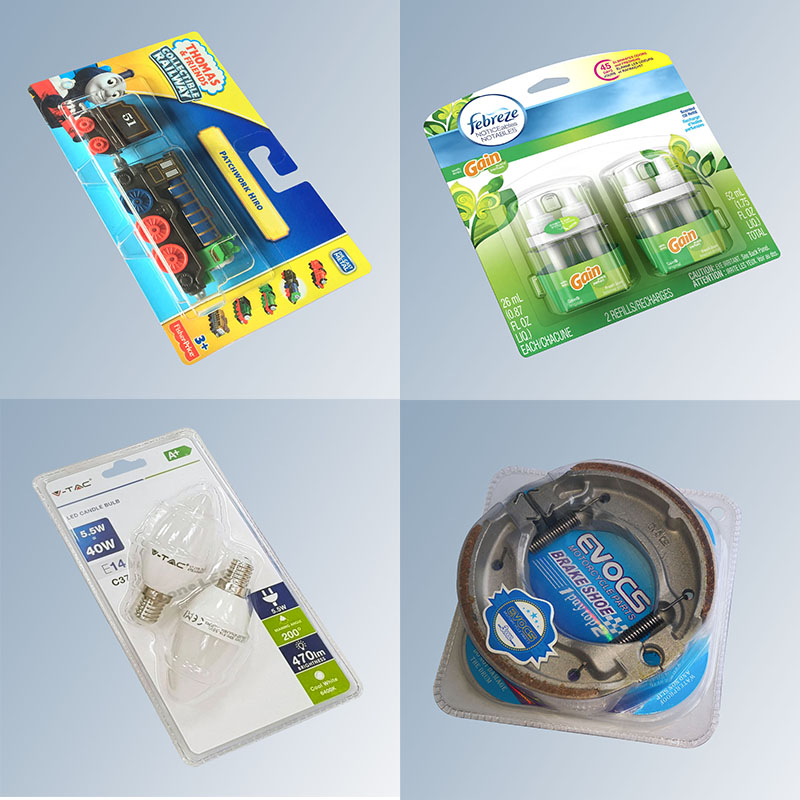

Cosmetics and beauty products, household items, office supplies, personal care products, batteries, automobile parts, etc




- Adopts high frequency sealing to make a stronger sealed flange.

- Flexible and cost efficient packaging of small to medium batches.

- Driven by servo motors to ensure the machine runs accurately.

- Reliable electrical equipment from famous international supplier like Omron, Mitsubishi, Delta, Panasonic, Schneider to ensure the stability.

- Optional extra blister forming station for double blister packages.

- Stainless steel machine shell.



Technical Data



Max. size of card

350 x 220mm

Max. forming area

330 x 180mm

Max. forming depth


Packing capacity

5-20 cycles/min

Power voltage

380V 50/60Hz 3phase

Power consumption

20 kW

Air pressure


Air consumption

≥0.5 CBM/min

Forming material

PVC, PET, PS, thickness 0.15-0.5mm

Forming material roll size

width 350mm x diameter 450mm

Machine shell material

Stainless steel

Overall dimensions

L3700 x W3100 x H1950mm

Overall Weight
