TW-160 Automatic Toilet Paper Wrapping Machine
Overview

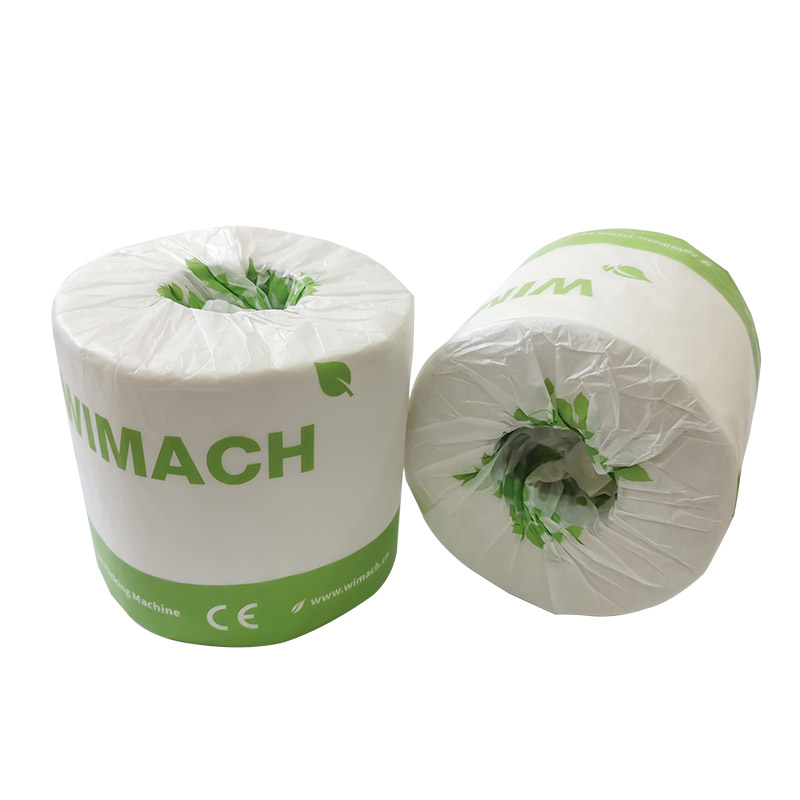

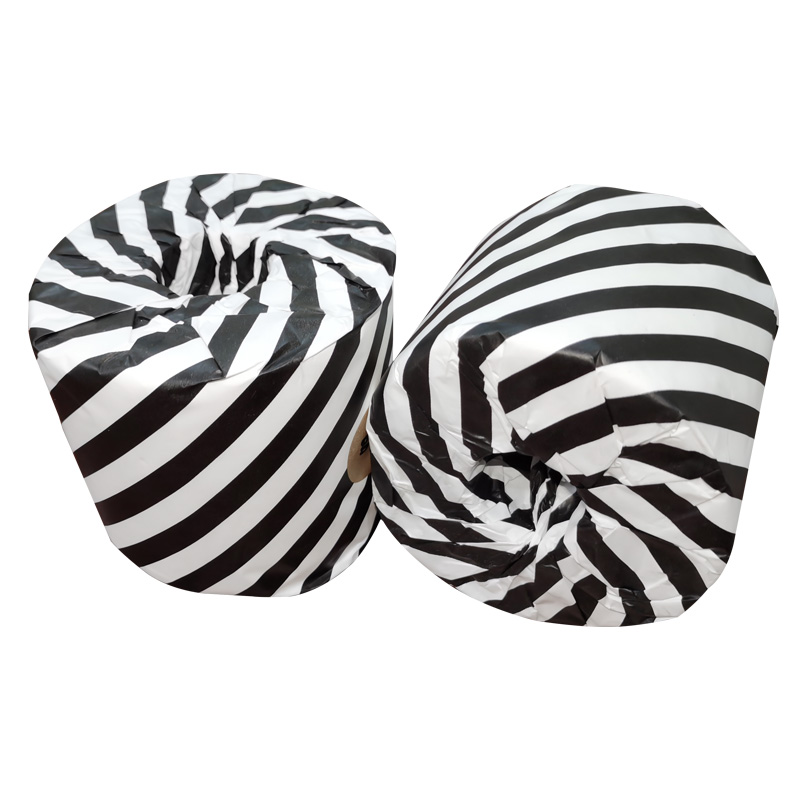

TW-160 automatic toilet paper wrapping machine is designed to use tissue paper to wrap toilet paper rolls and bathroom tissue paper rolls. The packing capacity is up to 120 rolls per minute steadily. The machine can feed toilet paper rolls, cut tissue paper, fold tissue paper, tuck tissue paper into the toilet rolls and output toilet paper rolls automatically.
Video
Features
- Compact structure and easy operation.
- Use 11 sets of servo motors.
- Feed tissue paper, cut tissue paper, feed toilet paper rolls, wrap paper rolls, clamp and tuck tissue paper and output paper rolls automatically.
- Controlled by Schneider motion controller and servo drivers.
- Reliable electrical equipment with famous international brands like Schneider, Sick.
- Easy and quick adjust for different toilet paper rolls.
Technical Data
|
Model |
TW-160 |
|
Packing capacity |
60-120 packs/min |
|
Toilet paper roll size |
90-130 (L) x 90-130 (D) mm |
|
Max packaging paper size |
480 (L) x 500 (D) mm |
|
Packaging paper thickness |
0.03-0.05 mm, 17-26 gsm |
|
Air pressure |
0.5Mpa |
|
Air consumption |
120-160 L/min |
|
Power |
380V 50/60Hz 3phase |
|
Power consumption |
11.2 kW |
|
Machine dimension |
2720 (L) x 5060 (W) x 1820 (H) mm |
|
Machine weight |
3500 kg |
Layout
