TC-80F Automatic Cubic Box Facial Tissue Packaging Machine

Package facial tissue paper and paper napkin into carton boxes especially cube boxes at speed up to 80 boxes per minute. It includes a Nordson adhesive dispenser and controlled by Schneider HMI, motion controller, servo motors and inverters.
Send Inquiry

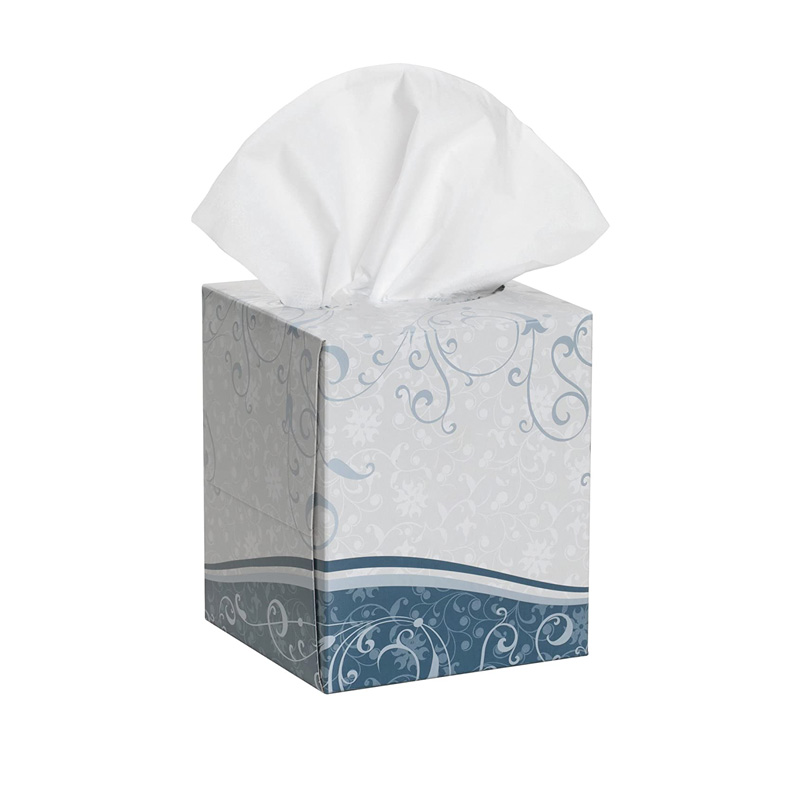

TC-80F automatic cubic box facial tissue packaging machine is designed to package facial tissue paper and paper napkin into carton boxes especially cube boxes at speed up to 80 boxes per minute. It includes a Nordson adhesive dispenser and controlled by Schneider HMI, motion controller, servo motors and inverters.



- Feed tissue, open carton, put tissue into carton, mark batch number, dispense hot melt adhesive, seal cartons and output packaged cartons automatically.
- Adopts servo motors to feed tissue paper and put tissue into cartons.
- Adopts high-capacity and faster cartons feeder.
- Feed cartons only when there are products before pusher.
- Adopts Nordson hot melt adhesive dispenser.
- Reliable electrical equipment with famous international brands like Schneider, Omron, Sick, Delta.
- Wide packing range, adjust packing size quickly.
- The machine stops when it is overload.


Technical Data



Packing capacity

30-80 packs/min

Carton box paper

300-400 gsm

Carton box size

115 (L) x 115 (W) x 130 (H) mm

Adhesive Dispenser


Air pressure


Air consumption

120-160 L/min


380V 50/60Hz 3phase

Power consumption

6.2 kW

Machine dimension

3250 (L) x 1650 (W) x 1800 (H) mm
2000 (L) x 260 (W) x 1200 (H) mm

Machine weight

2100 kg
