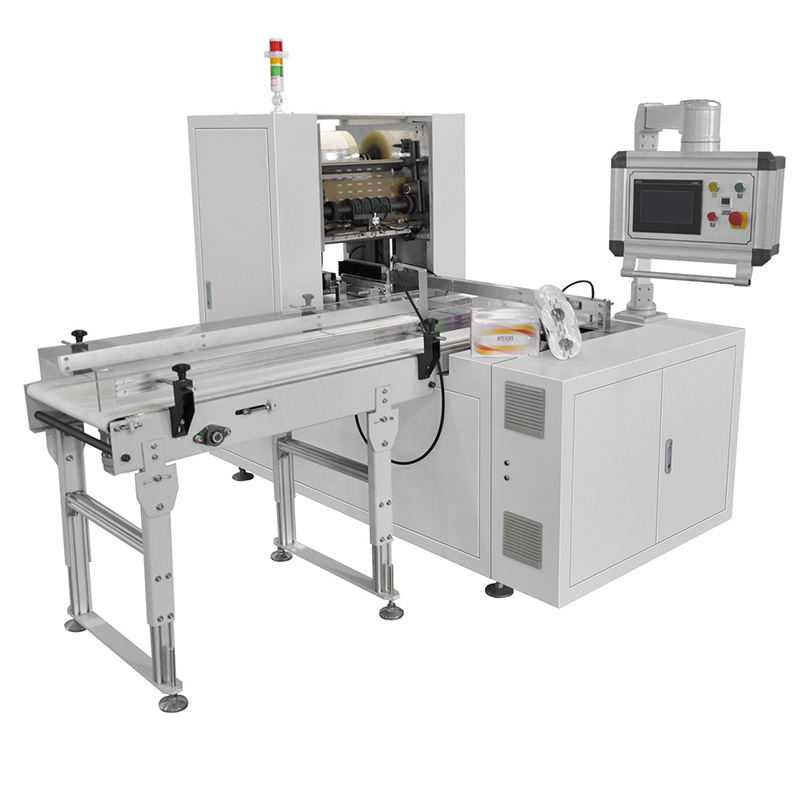

HT-700 Automatic Handle Taping Machine
Overview

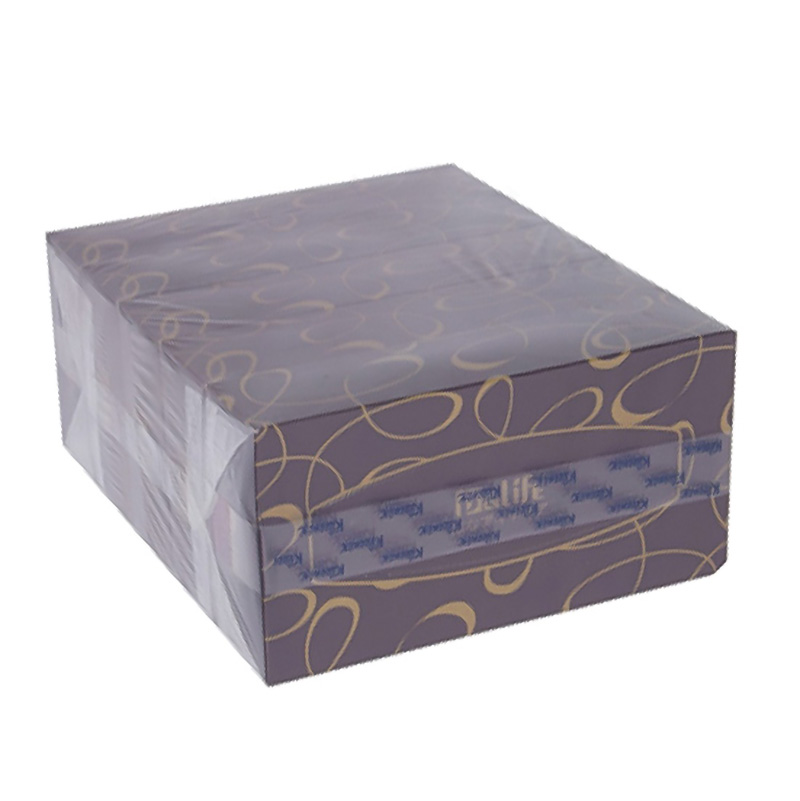

HP-700 automatic handle taping machine is designed to tape handles on group packages of facial tissue boxes or soft tissue packages or toilet paper roll packages automatically. The machine has compact structure and it's easy to operate and adjust when changing package size.
Video
Features
- Feed products, feed handle tape, cut handle and stick handle automatically.
- Controlled by PLC and touch screen.
- Wider packing range, easy to adjust packing size quickly.
- Adjust packing size without changing parts when changing product size.
Technical Data
|
Model |
HP-700 |
|
Packing capacity |
5-50 packs/min |
|
Handle tape material |
PET with adhesive |
|
Handle tape roll size |
Width 400 mm, Outer diameter 280 mm, paper core inside 76 mm |
|
Handle width |
20 – 50 mm |
|
Max packing size |
Length 700 mm x width 260 mm x height 130 mm |
|
Air pressure |
0.5Mpa |
|
Power |
380V 50/60Hz 3phase |
|
Power consumption |
1 kW |
|
Machine dimension |
1990 (L) x 1100 (W) x 1780 (H) mm |
|
Machine weight |
900 kg |
