PT-480 Automatic Takeout Box Food Tray Forming machine

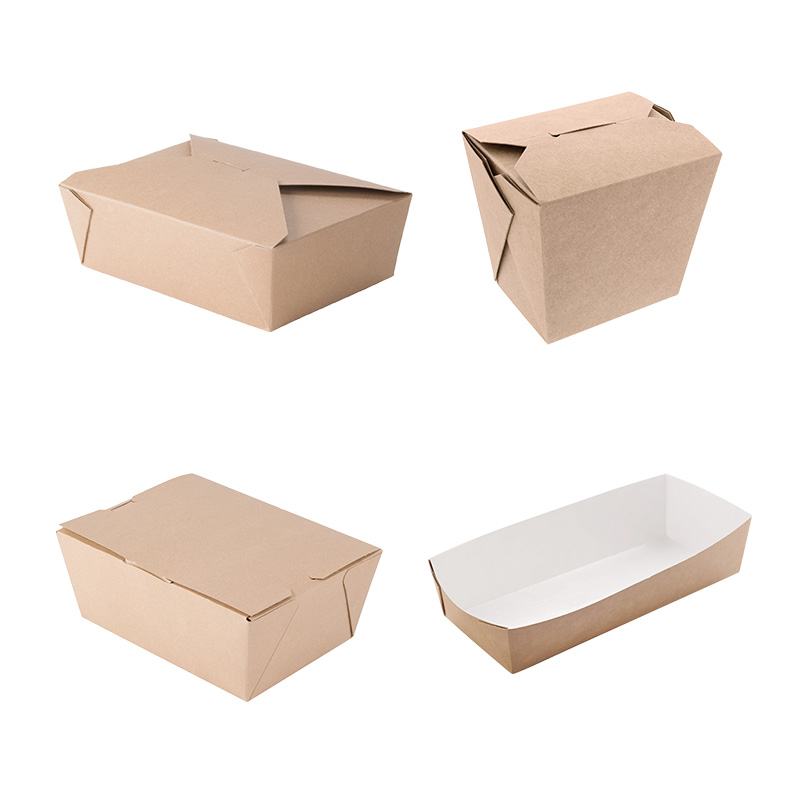

Erect and form paper box like take-out box, food tray, lunch box, fruit tray, etc.
Send Inquiry

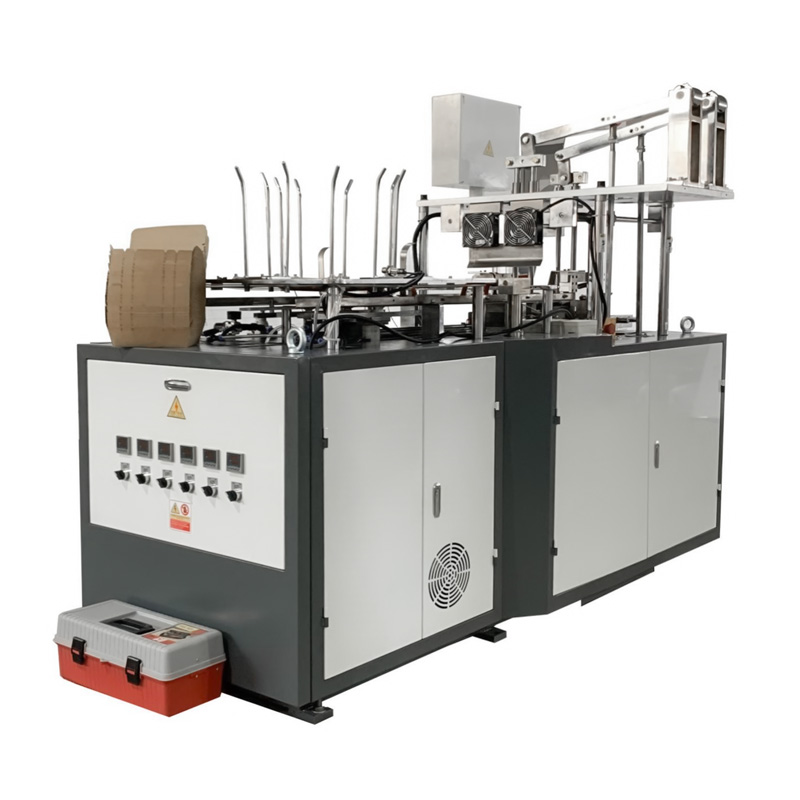

PT-480 automatic takeout box food tray forming machine is designed to erect and form paper box like take-out box, food tray, lunch box, fruit tray, etc.



- Feed paper cards, heat cards, form and seal paper box, output and stack box automatically.
- Box forming and sealing are driven by mechanical system. It makes sealing stronger and stably.
- Controlled by PLC and touch screen.
- Reliable electrical equipment with famous international brands like Siemens, Schneider, Omron, Delta.



Technical Data



Packing capacity

30-40 pcs/min

Forming material

200-600 gsm PE coated paper

Max paper size

480 (L) x 480 (W) mm


380V 50/60Hz 3phase

 Power consumption

5.5 kW

Machine dimension

2100 (L) x 1000 (W) x 1900 (H) mm

Machine weight

1250 kg
