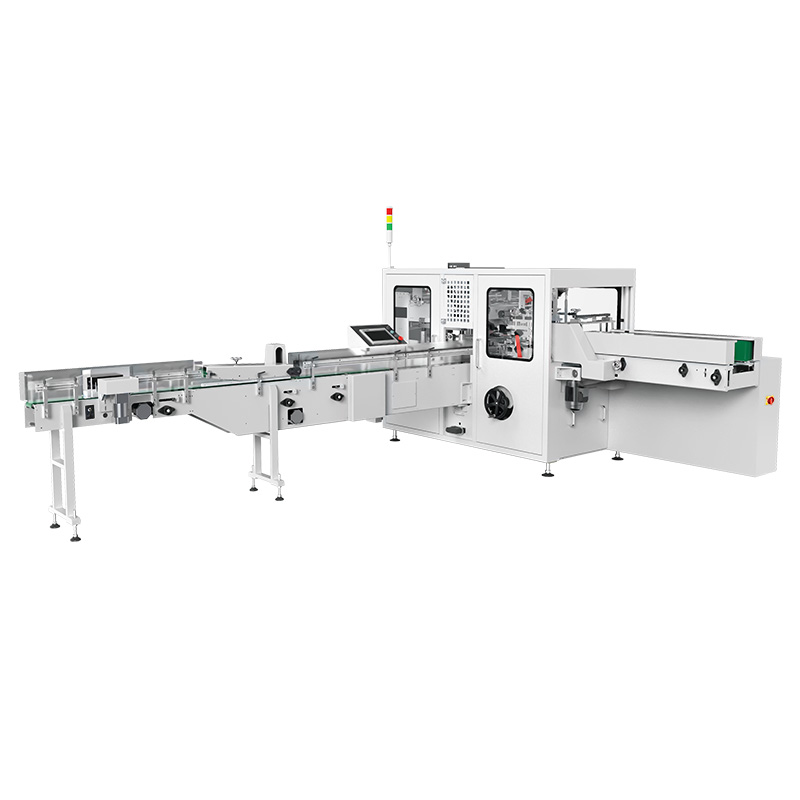

TP-180 Automatic Soft Tissue Plastic Film Wrapping Machine
Overview

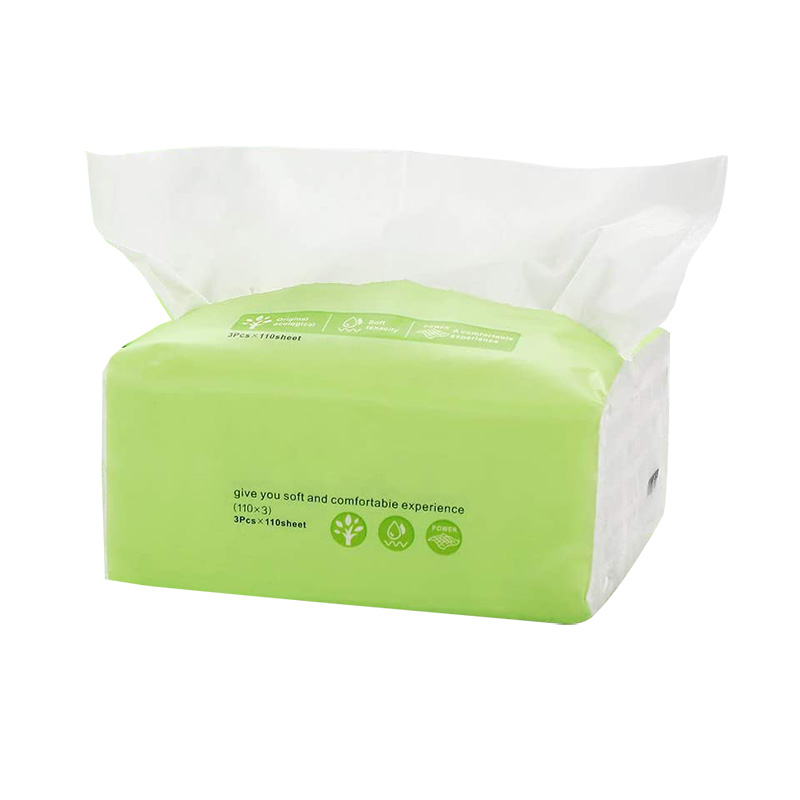

TP-180 automatic soft facial tissue wrapping machine uses plastic film to pack facial tissue, paper napkin, kitchen towel and cotton tissue. The max packing capacity is up to 100 packs per minute.
Features
- Adopt PLC, touch screen and reliable imported electrical equipment.
- Driven by servo motors to ensure the machine runs accurately.
- Sealing edge is flat and firm.
- Film cutting and broken-line cutting knife use spring rotary knives, driven by servo motor, it will not work when there is no film detected.
- Three shaft servo motor positioning control system.
- Equips a buffer conveyor with pressing device in front of the machine.
- Adopt high-precision photoelectric tracking and monitoring system.
Technical Data
|
Model |
TP-180 |
|
Packing capacity |
25-100 packs/min |
|
Packing size |
L 95-210 x W 85-110 x H 35-100mm |
|
Power voltage |
380V 50/60Hz |
|
Power consumption |
12 kW |
|
Air pressure |
0.5Mpa |
|
Film material |
CPP, PE, composite film |
|
Perforation shape |
Straight line, oval |
|
Film roll size |
Diameter 400mm x Width 340mm, thickness 0.035-0.05mm |
|
Machine dimension |
L 4735 x W 3915 x H 1840mm |
|
Machine weight |
2900 kg |
