DPB-420/520 Automatic Soft Blister Packaging Machine

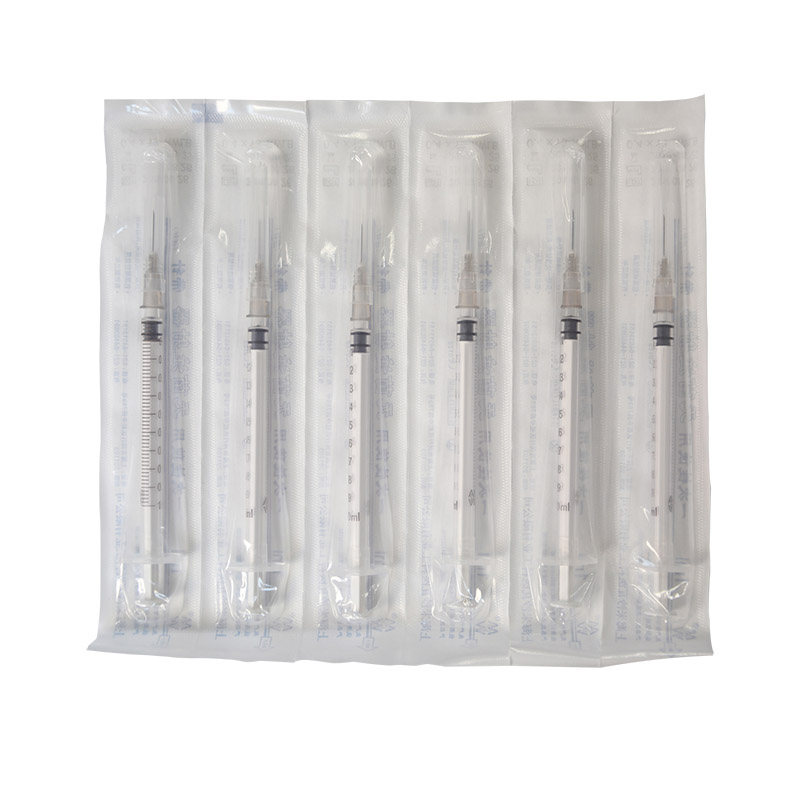

Form soft blisters, seal blisters with lid material or aluminum foil or paper automatically. It is widely used in paper-PE blister packaging for medical products like syringe needle, syringe, gauze, swab, infusion device, catheter etc.
Send Inquiry


DPB-420/520 automatic soft blister packaging machine can form soft blisters, seal blisters with lid material or aluminum foil or paper automatically. It is widely used in paper-PE blister packaging for medical products like syringe needle, syringe, gauze, swab, infusion device, catheter etc.



- Easy to adjust due to adopt Mitsubishi servo motor, touch screen, PLC.
- Molds are fixed by locating pins, easy to change them.
- Adopt world famous brand electric components.
- Adopts Busch vacuum pump, stable and durable.
- Adopts advanced cutting system, easy to adjust and change.
- Durable stainless steel construction.


Technical Data




Packing capacity

6-12 cycles/min

Max. forming area

375 x 375 x 50 mm

375 x 475 x 50 mm

Packing material

paper - plastic film, aluminum foil - plastic film, lid film - plastic film

Power consumption

16 kW

16 kW

Power voltage

380V 50/60Hz 3phase

Air pressure

0.5-0.8 Mpa

Air consumption

0.3 CBM/min

Machine shell material

Stainless steel

Overall dimensions

5820 x 980 x 1800 mm

5820 x 1150 x 1800 mm

Overall Weight

1700 kg

2000 kg
